Essential Budget Luthier Tools for Home Guitar Setup
The DIY Guitarist's Toolkit: Cheap & Effective Tools for Home Maintenance · By David Aitken · The Complete Guitar · Dundee, Scotland
One of the most persistent myths in guitar maintenance is that doing your own basic setup requires hundreds of pounds of proprietary lutherie tools. While specialized diamond fret-crowning files and neck-jigs are indispensable on an artisan workbench, the fundamental measurements that dictate 90% of your instrument's playability—neck relief, 12th-fret string height, nut slot clearance, and intonation—rely on simple, high-precision engineering gauges.
A 0.25mm gap under a guitar string is identical whether measured with a £45 branded gauge or a £7 stainless steel engineer's feeler blade. Below, I have catalogued the exact budget-conscious, bench-verified toolkit every guitarist should keep in their gig bag or home workshop to maintain optimal action, protect delicate hardware, and diagnose setup issues before they cause fret buzz or tuning instability.
Bench Protocol Reminder: The T.R.A.I.N. Sequence
Before adjusting screws at random, remember that guitar geometry is interdependent. Always follow the proper order: Tune ➔ Relief (Truss Rod) ➔ Action (Bridge) ➔ Intonation ➔ N (Nut). Read our full breakdown in The Correct Guitar Setup Order Guide to avoid undoing your bench adjustments.

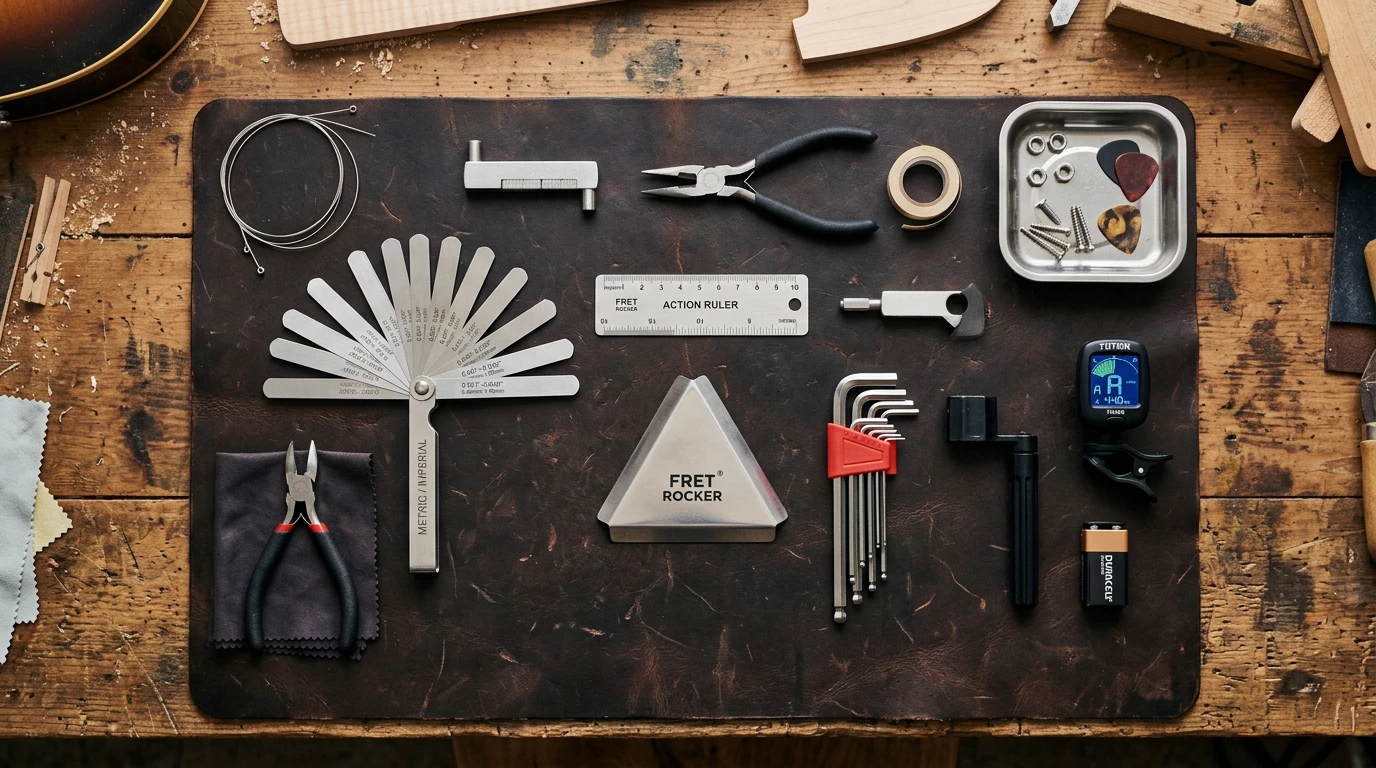

Diagnostic & Measurement Essentials
Precise guitar setups begin with objective decimal measurements, not guesswork or eyesight. These calibrated tools isolate relief, string action, and uneven frets down to fractions of a millimetre.
Dual Metric & Imperial Feeler Gauges (32-Blade)
Essential for measuring neck relief between 0.20mm and 0.30mm (0.008"–0.012"). Capo the 1st fret, hold down the low E at the body joint (typically the 14th or 17th fret), and slide the blade between the fret crown and bottom of the string at the 7th or 8th fret. A slight drag confirms your relief without bowing the string.
4-in-1 Precision Fret Rocker & Height Gauge
Isolate the exact high frets causing single-fret buzz. Featuring four CNC-machined precision straightedges spanning 3 frets at a time across any fingerboard position. If the tool rocks with a metallic click over the centre fret, that fret is seated high or popped loose.
Precision Steel Action Gauge & String Height Ruler
Measure string height above the 12th fret without parallax optical error. Laser-etched with decimal metric increments (0.25mm steps) and fractional imperial scales, plus pickup height and bridge saddle guides to dial in electric (1.5mm treble / 2.0mm bass) or acoustic action.
Fast Trigger / Screw Capo
Acts as an indispensable “third hand” at your bench. Clamps the 1st fret during neck relief inspections and nut slot height audits, isolating nut depth variables so you measure pure truss rod curvature without assistance.
Relief Severely Out of Spec or Saddles Frozen?
Discovered your neck relief is severely out of spec or bridge saddles are frozen? Book a £95 Full Setup with free Dundee doorstep collection, electronic strobe calibration, and complete geometric overhaul.
Hardware, Tuning & Bench Consumables
Stripped hex screws and slipping strings cause costly workshop trips. These hand tools and friction-reducing lubricants ensure smooth adjustments and rock-solid pitch stability.
Ball-End Hex Key Set (Metric & Imperial)
Fits Fender (1/8" / 3/16"), Gibson (5/16"), and Martin acoustic soundhole truss rods (4mm / 5mm ball-end), as well as tiny 0.050" and 1.5mm bridge saddle grub screws. Ball ends permit angled access without chewing delicate screw sockets.
MusicNomad TUNE-IT Nut & Saddle Lubricant
David's personal bench choice for eliminating string friction, binding, and tuning “pings”. Non-staining, biodegradable formula safe for bone, synthetic, TUSQ, and tremolo contact points. Applied in seconds using the included micro-brush.
Ergonomic String Winder & Wire Cutters
Accelerates restrings while safeguarding headstocks from accidental gouges. Includes hardened steel flush wire cutters capable of snipping heavy .056 bass cores cleanly without indenting the cutting jaws, plus an acoustic bridge pin puller.
Fret Rocker Clicking Across Frets?
Fret rocker clicking across frets? Read our Fret Level vs Refret Guide to learn the 0.75mm crown rule or book our £115 Fret Dressing service for precision diamond recrowning and 8000-grit mirror polish.
LuthierScan Pro Mobile Audio Adapters
Transform your smartphone into a strobe-accurate bench oscilloscope and pickup frequency analyser. Direct-injection audio cables bypass smartphone microphones for pristine sub-cent intonation tracking.
USB-C to 6.35mm (1/4") Female Instrument Jack
Plug your standard guitar cable straight into any USB-C smartphone or tablet. Enables high-fidelity pickup signal analysis and strobe intonation calibration inside LuthierScan Pro without acoustic background noise corrupting your pitch readings.
USB-C to 6.35mm (1/4") Male Audio Output Cable
Direct signal tracing and output calibration cable. Ideal for injecting audio test sweeps, checking preamp circuitry, and routing reference tones into guitar amplifiers and workshop audio interfaces with robust gold-plated connectors and noise shielding.
Complete Your Bench: Organic Tonewood & Finish Ritual
Pair your new hardware tools with our luthier-grade Clarity Wash & Resonance Balm. Silicone-free, lemon-oil-free botanical formulations hand-blended in Dundee to purify finishes and stabilize dry fretboards.
How to Execute a 15-Minute Bench Setup with Budget Tools
Step 1: Inspect Neck Relief (Feeler Gauge + Capo)
Affix your trigger capo securely over the 1st fret. Depress the low E string against the body fret (14th on acoustic, 17th on electric). Insert the 0.25mm feeler blade between the 8th fret crown and string. If the blade lifts the string, your neck has too much relief (looseness); tighten the truss rod 1/8 turn clockwise using your ball-end hex key. If the blade cannot enter without deflecting the string, the neck is too flat or back-bowed; loosen 1/8 turn counter-clockwise.
Step 2: Sweep Frets for High Spots (4-in-1 Fret Rocker)
Place the fret rocker across frets 1, 2, and 3 under each string. If the rocker pivots, fret 2 is high. Slide the tool up the neck, selecting progressively shorter straightedges as fret spacing narrows towards the 24th fret. Mark any rocking fret with low-tack tape. If multiple frets click, read our Fret Level vs Refret Guide for diagnostic steps.
Step 3: Measure 12th-Fret String Action (Steel Action Gauge)
Rest the base of your steel action gauge directly on the 12th fret wire. Read the line aligning with the underside of each string. For electric guitars, aim for 1.5mm on the high E and 2.0mm on the low E. For acoustic guitars, target 2.0mm treble and 2.5mm bass. Adjust individual bridge saddle heights with the appropriate hex key (0.050" or 1.5mm).
Step 4: Lubricate Contact Slots (MusicNomad TUNE-IT)
During string changes or when slacking strings, apply a microscopic dab of TUNE-IT directly into the nut slots, under string trees, and across bridge saddle contact points. This stops strings from snagging during tremolo use or aggressive bends, curing 90% of tuning instability issues at the nut.
Step 5: Calibrate Strobe Intonation (USB-C Adapter + LuthierScan)
Connect your guitar directly to your mobile device using the USB-C to 1/4" instrument adapter. Launch LuthierScan Pro. Tune the open string, then strike the 12th fret harmonic and fretted 12th note. Adjust the bridge saddle forward (towards the headstock) if flat, or back (towards the tailpiece) if sharp until strobe rings freeze in place.
Frequently Asked Questions
Do I need expensive specialist tools to set up my own guitar?
No. While specialized fret crowning files and precision radius blocks are worth the investment for advanced bench lutherie, everyday setup tasks like neck relief, string action, and saddle intonation only require calibrated feeler gauges, a stainless steel string action ruler, quality ball-end hex keys, and a fret rocker. High-precision engineering tools deliver the exact same metric accuracy for a fraction of the cost.
What feeler gauge thickness do I need for guitar neck relief?
Most electric and acoustic guitars require neck relief between 0.20mm (0.008") and 0.30mm (0.012"). A 32-blade metric and imperial feeler gauge set allows you to accurately measure clearance at the 7th or 8th fret with a capo clamped on the 1st fret.
How does a fret rocker help detect guitar fret buzz?
A fret rocker features four precision ground straightedges spanning different fret widths. By placing the appropriate edge across three consecutive frets at a time, any rocking motion immediately isolates a single high fret causing localized buzzing or choking on bends.
Why use a USB-C to 6.35mm adapter with LuthierScan Pro?
Connecting your electric guitar or acoustic pickup directly to your smartphone via a USB-C to 1/4" audio adapter eliminates ambient room acoustic noise, delivering clean direct-injection signal for sub-cent strobe intonation analysis and pickup output frequency calibration.
