Free Tuner · £4.99 One-Time Pro Unlock · Android Only
Precision Tuner & Setup Calculator

LuthierScan Pro.

Precision Android guitar tuner with a dual-bar HUD, native SwiftF0 pitch engine (mint-green flash and haptic tap when in tune), and interactive setup tolerances in metric (mm) or imperial inches.

Download Free on Google PlayOpen Spec Calculator

Free tuner, zero ads; £4.99 one-time Pro unlock. Android only.

LuthierScan Android app tuner screen beside feeler gauges on a workbench
BENCH TOLERANCE CALCULATOR

Guitar & Bass Setup Spec Calculator

Select your instrument, scale length, playing style, and measurement unit for instant neck relief, nut clearance, 12th-fret action, and Mottola saddle compensation targets.

4. Measurement Unit

Step 1 · 7th-Fret Neck Relief

1st + Last Fret Pressed

0.15–0.25 mm (0.006"–0.010")

Step 2 · 1st-Fret Nut Clearance

Bass / Treble

0.45 mm (0.018") / 0.25 mm (0.010")

Step 3 · 12th-Fret Action

Standard Bench Spec (Bass / Treble)

1.80 mm (0.071") / 1.50 mm (0.059")

Step 1 Truss Rod Rule: Too much relief (bow)? Turn truss rod clockwise 1/8 turn to flatten. Fret buzz on frets 1–5 (back-bow)? Turn counter-clockwise 1/8 turn to add relief. Turn in 1/8-turn steps, recheck relief after each, and stop if you feel resistance. Truss rod types differ; if unsure, book a setup.

Step 4 · Mottola Saddle Displacement Simulator

12th-Fret Cents Deviation Slider

+4.0 cents
-15.0 cents (Flat)+15.0 cents (Sharp)

Fretted note is +4.0 cents sharp -> Move saddle BACK (away from nut) by 0.75 mm (0.029").

Steps 4–5 · Phone Pitch Lock & Certificate Export

A browser can't hear your 12th-fret harmonic. On a 647.7 mm scale, every 2 cents of error at the 12th fret is about 0.37 mm of saddle movement. In LuthierScan, pluck the harmonic and tap Lock, fret the note and tap Lock again, and see how far to move the saddle. Free tuner, zero ads; the £4.99 one-time Pro unlock adds the intonation calculator and 300 DPI Studio White PDF setup certificates. Android only.

Download Free on Google PlayRead the DIY Intonation Guide
Full Reference Tolerances (Metric & Imperial)

Guitar & Bass Action Height Chart

InstrumentStep 1: 7th-Fret Neck Relief (1st + Last Fret Pressed)Step 2: 1st-Fret Nut Clearance (Bass / Treble)Step 3: 12th-Fret Action — LowStep 3: 12th-Fret Action — StandardStep 3: 12th-Fret Action — Heavy
6-String Electric0.15–0.25 mm (0.006"–0.010")0.45 mm (0.018") / 0.25 mm (0.010")1.50 mm (0.059") / 1.20 mm (0.047")1.80 mm (0.071") / 1.50 mm (0.059")2.00 mm (0.079") / 1.60 mm (0.063")
6-String Acoustic0.20–0.30 mm (0.008"–0.012")0.55 mm (0.022") / 0.35 mm (0.014")2.20 mm (0.087") / 1.60 mm (0.063")2.40 mm (0.094") / 1.80 mm (0.071")2.60 mm (0.102") / 2.00 mm (0.079")
4-String Bass0.25–0.35 mm (0.010"–0.014")0.60 mm (0.024") / 0.45 mm (0.018")2.20 mm (0.087") / 1.80 mm (0.071")2.40 mm (0.094") / 2.00 mm (0.079")2.80 mm (0.110") / 2.20 mm (0.087")
5-String Bass0.25–0.35 mm (0.010"–0.014")0.65 mm (0.026") / 0.45 mm (0.018")2.20 mm (0.087") / 1.80 mm (0.071")2.40 mm (0.094") / 2.00 mm (0.079")2.80 mm (0.110") / 2.20 mm (0.087")
Setup & Tuning

Your Essential Tools

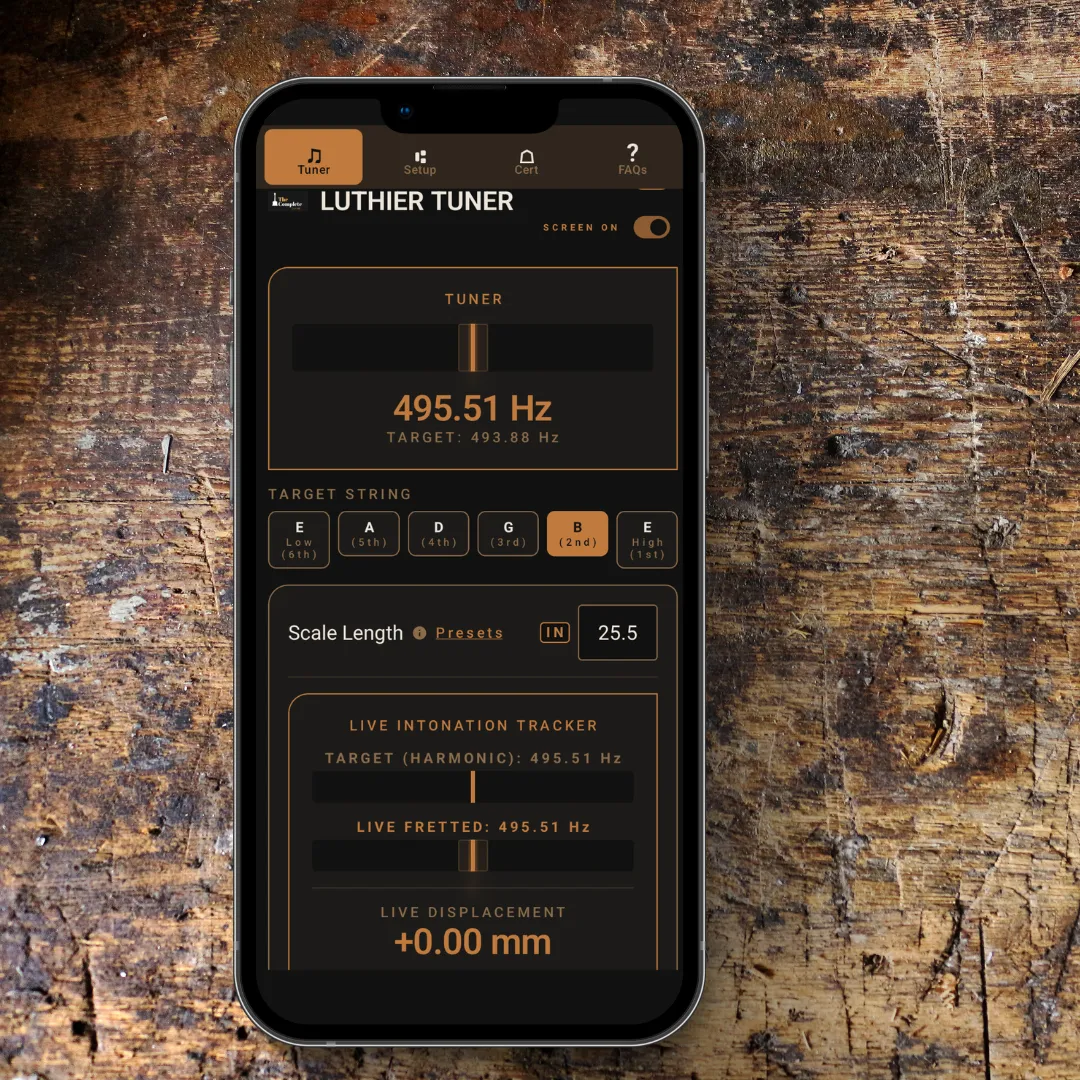

LuthierScan SwiftF0 dual-bar HUD precision tuner display

Dual-Bar HUD & SwiftF0 Pitch Engine

Powered by a native SwiftF0 neural pitch engine with a responsive dual-bar HUD on Android. Select your target string, pluck the 12th-fret harmonic and tap Lock, then fret the 12th note and tap Lock again — the HUD flashes mint green with a haptic tap when both frequencies match.

  • Native SwiftF0 Pitch Engine
  • Mint-Green Flash & Haptic Tap
  • Dual-bar HUD tuner

Interactive Setup Calculator

Dial in your setup step by step. Log your measurements in metric (mm) or imperial inches and calculate the adjustments for truss rod relief, 1st-fret nut clearance, 12th-fret action, and Mottola saddle displacement based on scale length and playing style.

  • Neck Relief Targeting
  • Nut Slot Depth Mapping
  • Metric & Imperial Support

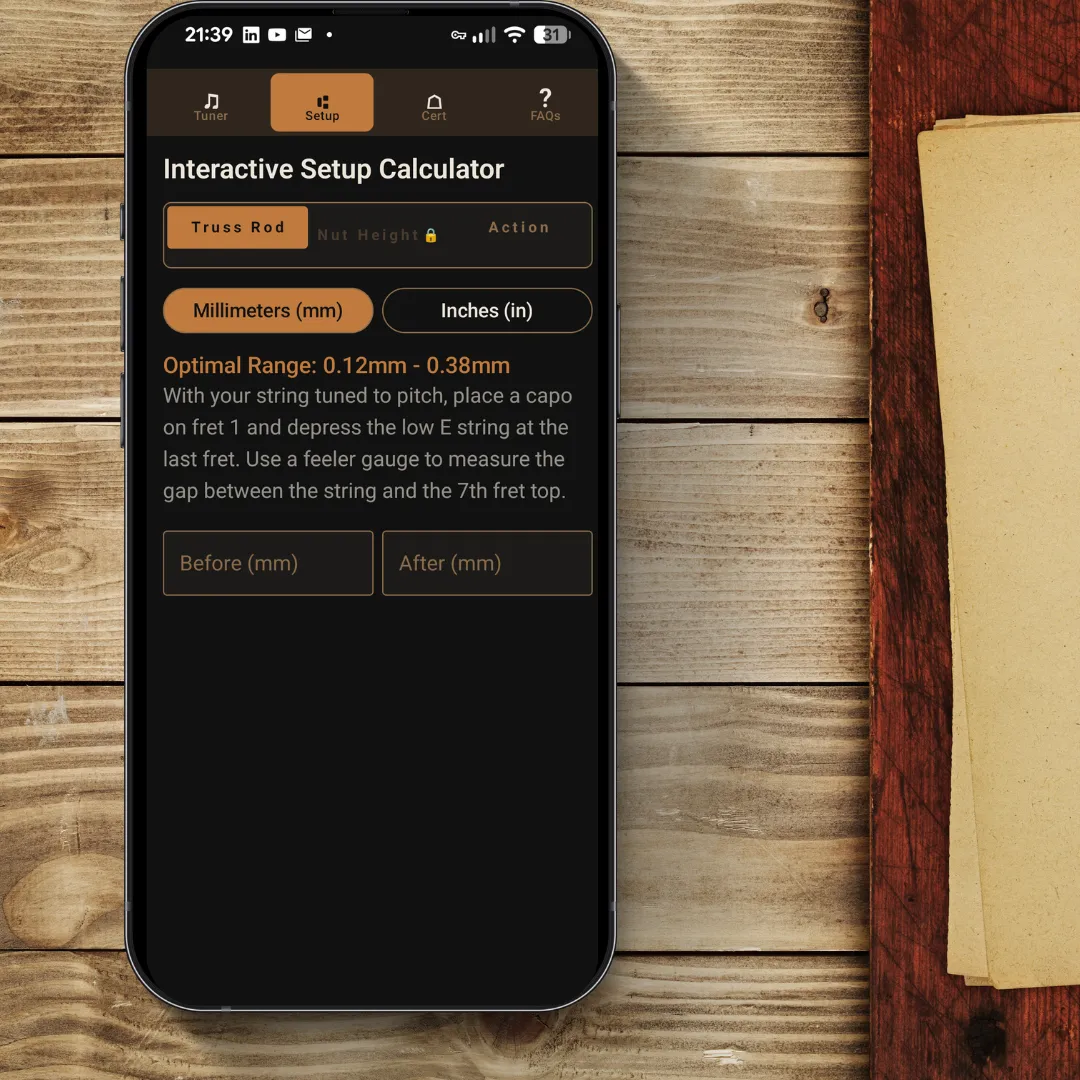

LuthierScan Interactive Setup Calculator

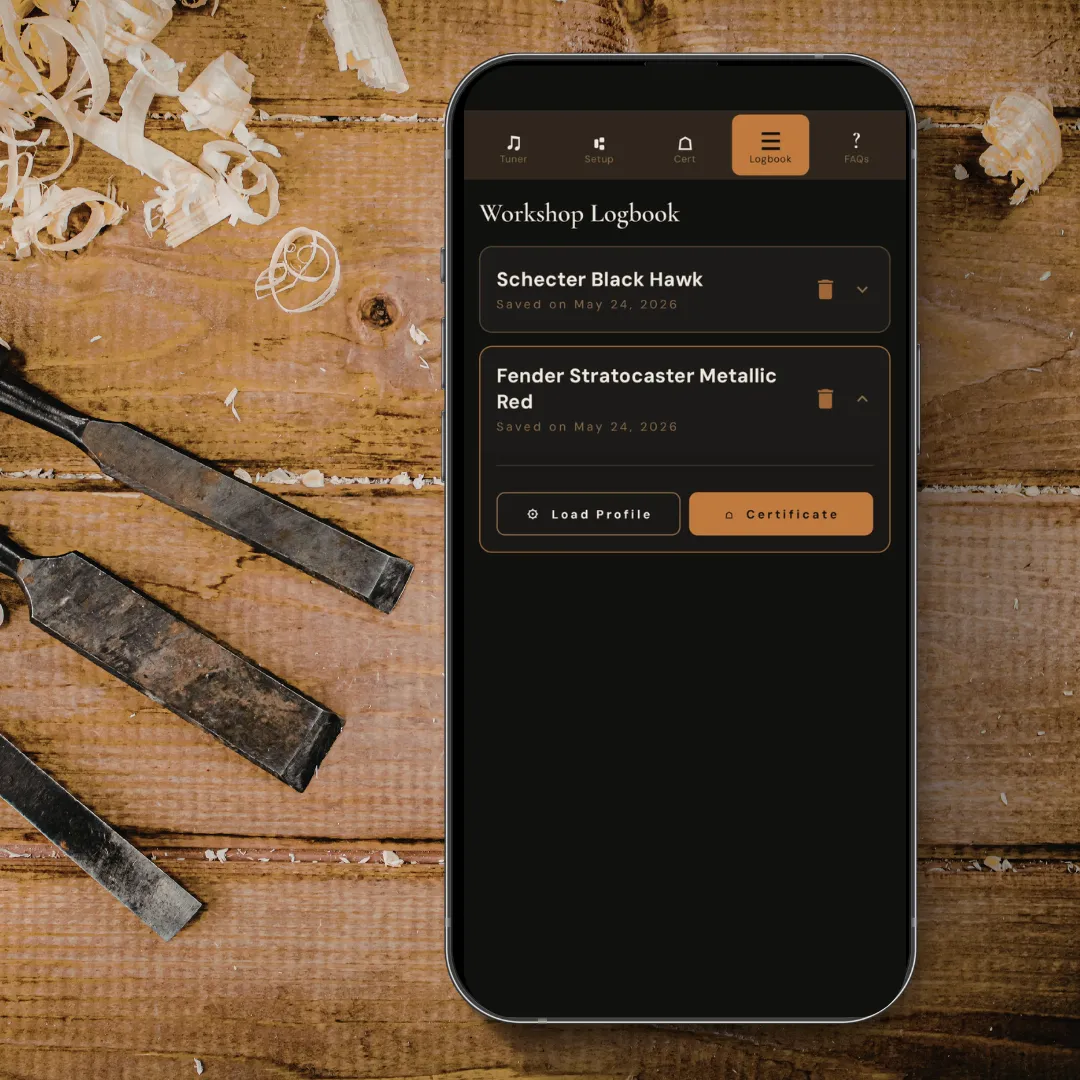

LuthierScan Workshop Logbook and 300 DPI Studio White PDF Setup Certificate
Step 5 · Guitar Setup Certificate Template

Guitar Logbook & 300 DPI “Studio White” PDF Certificates

Record before-and-after measurements for every instrument in your collection — neck relief, 1st-fret nut clearance, 12th-fret action, string gauge, and intonation lock history — then export a printable 300 DPI “Studio White” PDF Guitar Health Certificate for your bench records or client handovers.

  • Multi-Instrument Logbooks
  • Relief & Action History Tracking
  • 300 DPI “Studio White” PDF Exports
Feature Comparison

LuthierScan vs. Typical Clip-On Tuner

FeatureLuthierScan (Android)Typical clip-on tuner
Tuning displayDual-bar HUD; mint-green flash and haptic tap when in tuneNeedle or LED display
Mottola Saddle Displacement CalcBuilt in (mm & in), ProNot typically included
Neck relief & action loggingBuilt in, ProNot typically included
300 DPI PDF Setup Certificates"Studio White" client export, ProNot typically included
Wear OS Wrist CompanionIncludedNot typically included
5-String Bass Low B0 (30.87 Hz)SupportedVaries by model
CostFree tuner, zero ads · £4.99 One-Time Pro UnlockVaries
Frequently Asked Questions

LuthierScan Setup & Tuner FAQ

How accurate is the LuthierScan tuner?

It reads pitch in real time with a dual-bar display and runs a neural pitch engine (SwiftF0) on your phone. Phone microphones and clocks add their own error, so treat it as a precision tuner, not a calibrated reference.

Why does tuner accuracy matter when setting intonation?

On a 647.7 mm (25.5") scale, a 2-cent reading error shifts the calculated saddle position by about 0.37 mm. Small errors are hard to hear, but a steadier reading gives a more repeatable setup.

Can it track a 5-string bass down to low B0 (30.87 Hz)?

Yes. It supports 4-string and 5-string basses down to low B0 (30.87 Hz). Very low notes take a moment to settle, so let the string ring.

What is included free vs the £4.99 Pro unlock?

The tuner and standard tuning presets are free with zero ads. The £4.99 one-time upgrade (no subscriptions) unlocks the Mottola intonation displacement calculators, neck relief & action loggers, multi-instrument logbooks, and 300 DPI PDF Setup Certificates.

Dundee Workshop Escalation · Evenings & Weekends

Worn Fret Crowns, High Nut Slots, or Maxed-Out Saddles?

If your calculator check shows buzzing frets, binding nut slots, or bridge saddles that have reached the end of their travel, hand the instrument over to David Aitken's Dundee workbench: book The Complete Setup (£95.00) or The Complete Fret Service (£115.00) (alongside The Complete Nut Service (£60.00) and The Complete Restring (£35.00)).

All workshop servicing operates strictly on evenings and weekends via the 3-Zone Service Booking Model: Zone 1 offers complimentary doorstep collection and return across Dundee, Broughty Ferry, and Monifieth; Zone 2 covers Carnoustie and Longforgan (+£10 travel fee); Zone 3 regional drop-off and collection is by prior appointment strictly outside 33E Ballindean Road, Dundee, DD4 8NN. Zero unannounced walk-ins or visitors inside the residential flat.

New to guitar setup? Read The Correct Guitar Setup Order before turning a truss rod or saddle screw.
